About this item

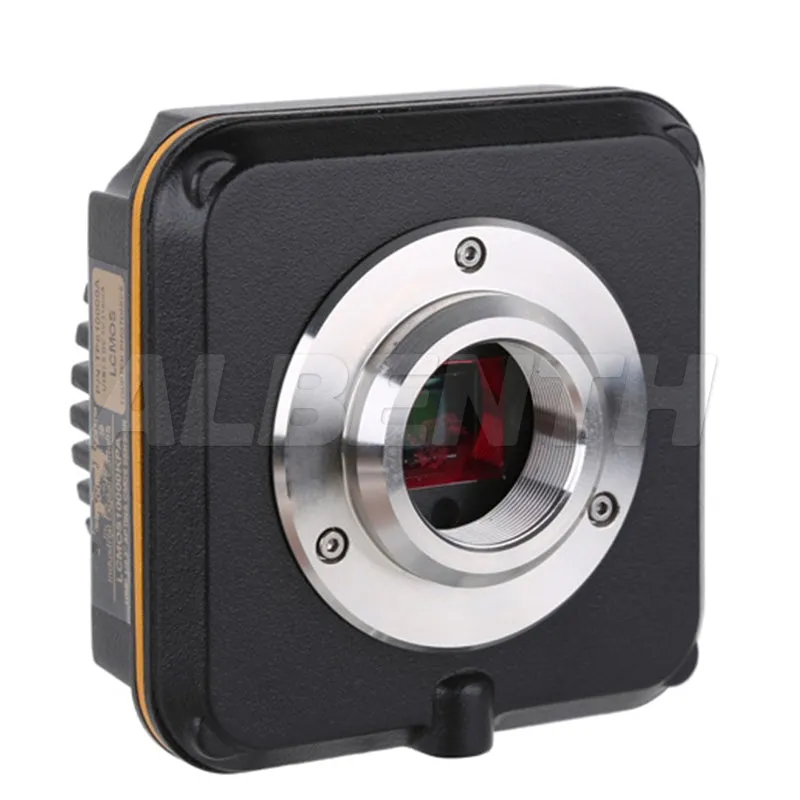

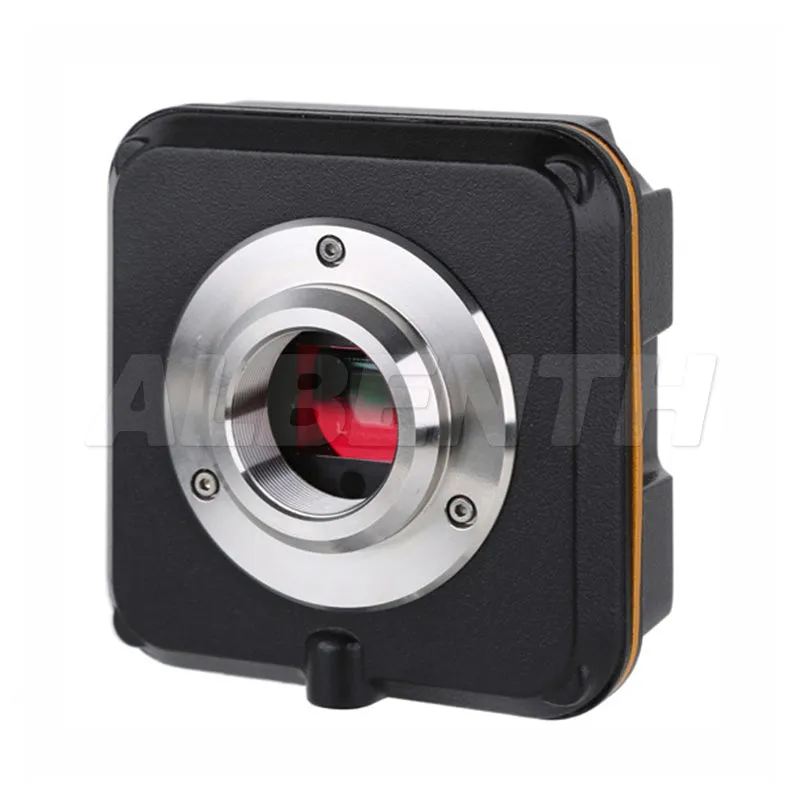

• Standard C-Mount camera with Aptina CMOS sensor;
• With hardware resolution among 1.2M to 14M;
• On-board memory for perfect synchronization，higher frame rate and stable performance;
• High performance cooling structure, ensures low image noise;
• USB3.0 5 Gbps interface ensuring high frame rate;
• Ultra-Fine color engine with perfect color reproduction capability;
• With advanced video & image processing application ToupView;
• Windows/Linux/macOS/Android multiple platform SDK;

Product description

• PC3-HP comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc);
• The Camera can be widely used in brightfield light environment and microscope image capture and anaysis.

Product information

•  Sensor & Size(mm): 14M/MT9F002(C)
                                    1/2.3" (5.73x4.60)
• Pixel(μm): 1.4x1.4
• G Sensitivity, Dark Signal: 0.724v/lux-sec
                                            65.3dB
                                            35.5dB
• FPS/Resolution:  6.2@4096x3286
                             20.8@2048x1644
                             53.3@1024x822
• Binning:   1x1,
                  2x2,
                  4x4

• Exposure: 0.1ms~20000ms

Other Hardware Configuration

• Spectral Range: 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
• White Balance: ROI White Balance/ Manual Temp-Tint Adjustment
• Color Rendering Technique: Ultra Fine Color Engine
• Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc);
• Recording System: Still Picture and Movie
• Cooling System:  Natural

Operating Environment

• Operating Temperature(in Centidegree) -10°C~ 50°C
• Storage Temperature(in Centidegree) -20°C~ 60°C
• Operating Humidity 30~80%RH
• Storage Humidity: 10~60%RH
• Power Supply:  DC 5V over PC USB Port

Software Environment

• Operating System: Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)OSx (Mac OS X) Linux PC Requirements:
• CPU: Equal to Intel Core2 2.8GHz or Higher,
• Memory: 4GB or More
• USB Port: USB2.0 High-speed Port
• Display: 17'' or Larger
• CD-ROM

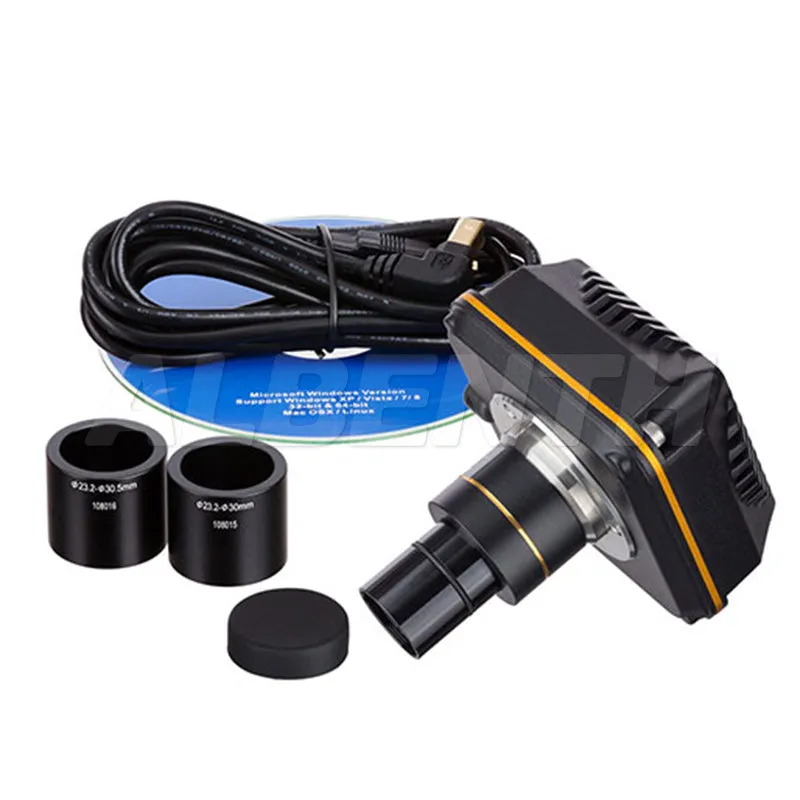

 What's in the Box ?

• 1 pc RT30UY-14M USB3.0 Microscope Camera
• 1 pc High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
• 1 pc CD (Driver & utilities software, Ø12cm)
• 1 pc Fixed Reduction lens: 0. 5X ( For 23.2mm eyepieces tube)
• 1 pc Adaptor ring for 30mm eyepeices tube
• 1 pc Adaptor ring for 30.5mm eyepeices tube

Delivery time

• Around 2-3days

Shipping way

• Standard Free shipping By UPS, FedEx, TNT, DHL (Around 4-8days)
